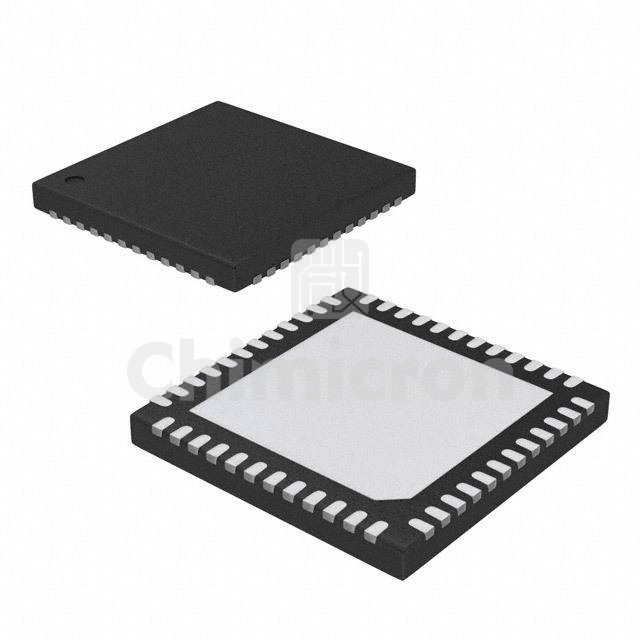

TMC5072-LA-T
Manufacturer: TRINAMIC Motion Control GmbH
Description: IC MTR DRV BIPOLAR 5.5-26V 48QFN
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:78
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMC5072-LA-T TRINAMIC Motion Control GmbH at chimicron.com. We have 78 pieces of TMC5072-LA-T in stock available now. Submit an inquiry for TMC5072-LA-T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (8)
InterfaceSPI, Step/Direction
TechnologyPower MOSFET
Step Resolution1 ~ 1/256
ApplicationsGeneral Purpose
Current - Output1.1A
Voltage - Supply5.5V ~ 26V
Voltage - Load5.5V ~ 26V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-QFN (7x7)
