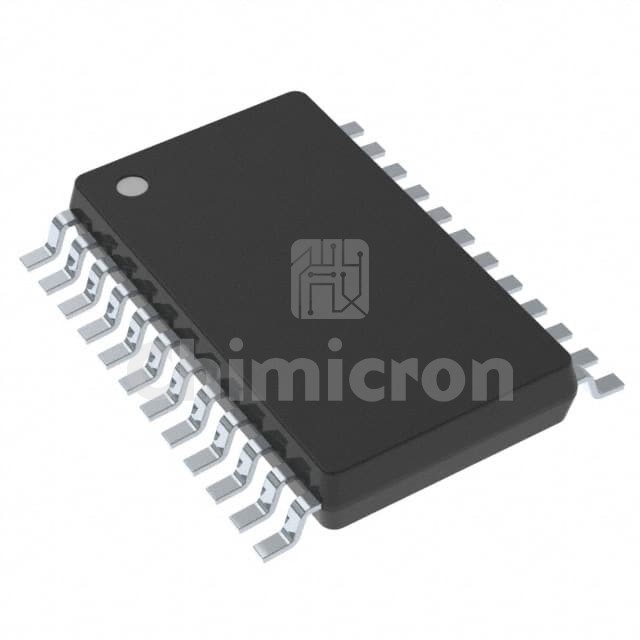

L9942XP1TR
Manufacturer: STMicroelectronics
Description: IC MTR DRV BIPLR 3-5.3V 24PWRSSO
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:25500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L9942XP1TR STMicroelectronics at chimicron.com. We have 25500 pieces of L9942XP1TR in stock available now. Submit an inquiry for L9942XP1TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceSPI
TechnologyDMOS
Step Resolution1, 1/2, 1/8, 1/16, 1/32
ApplicationsAutomotive
Current - Output1.3A
Voltage - Supply3V ~ 5.3V
Voltage - Load7V ~ 20V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-PowerBSOP (0.295", 7.50mm Width)
Supplier Device PackagePowerSSO-24
