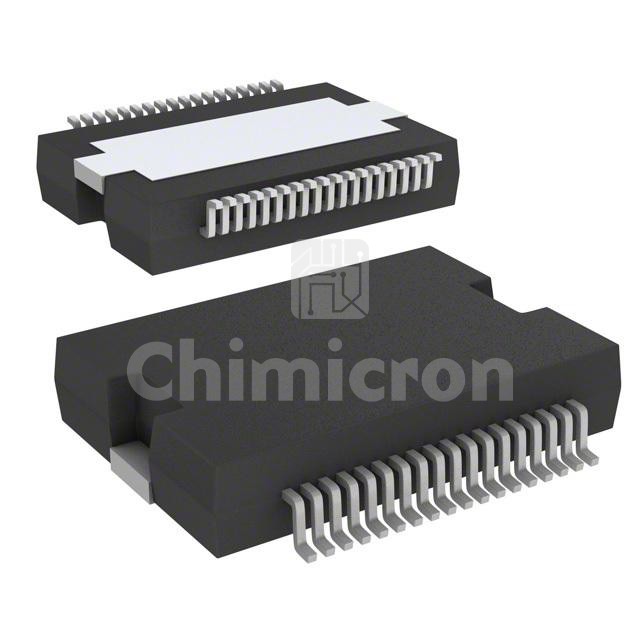

L6472PD
Manufacturer: STMicroelectronics
Description: IC MTR DRV BIPLR 3.3V/5V 36PWRSO
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: STSPIN L64
In Stock:240
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6472PD STMicroelectronics at chimicron.com. We have 240 pieces of L6472PD in stock available now. Submit an inquiry for L6472PD or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTSPIN L64
PackageTube
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceSPI
TechnologyDMOS
Step Resolution1 ~ 1/16
ApplicationsGeneral Purpose
Current - Output3A
Voltage - Supply3.3V, 5V
Voltage - Load8V ~ 45V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device PackagePowerSO-36
