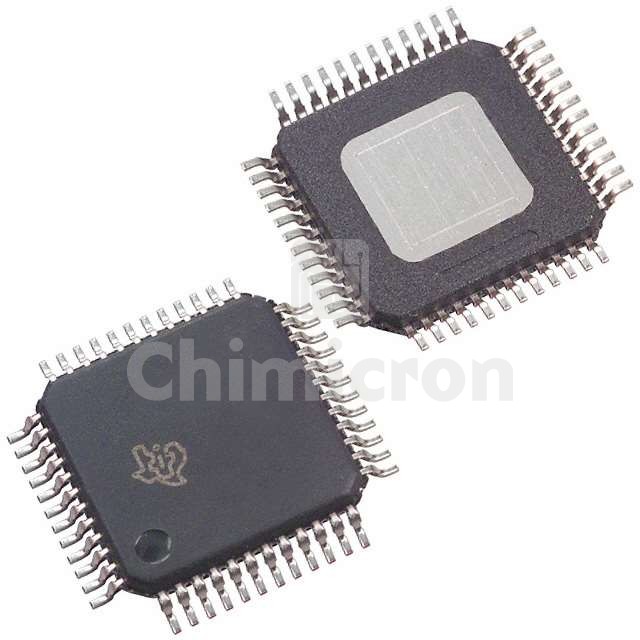

DRV8305NPHPR
Manufacturer: Texas
Description: IC MTR DRV MULTI 4.4-45V 48HTQFP
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:163472
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8305NPHPR Texas at chimicron.com. We have 163472 pieces of DRV8305NPHPR in stock available now. Submit an inquiry for DRV8305NPHPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Motor Type - StepperMultiphase
Motor Type - AC, DC-
FunctionController - Commutation, Direction Management
Output ConfigurationPre-Driver - Half Bridge (3)
InterfacePWM, SPI
TechnologyPower MOSFET
Step Resolution-
ApplicationsThree-Phase BLDC, PMSM Motors
Current - Output-
Voltage - Supply4.4V ~ 45V
Voltage - Load-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case48-PowerTQFP
Supplier Device Package48-HTQFP (7x7)
Related Parts for DRV8305NPHPR
Linear Technology (Analog Devices, Inc.)
LTC1695CS5#TRMPBFIC MOTOR DRVR 4.5V-5.5V SOT23-5
In Stock: 190318
