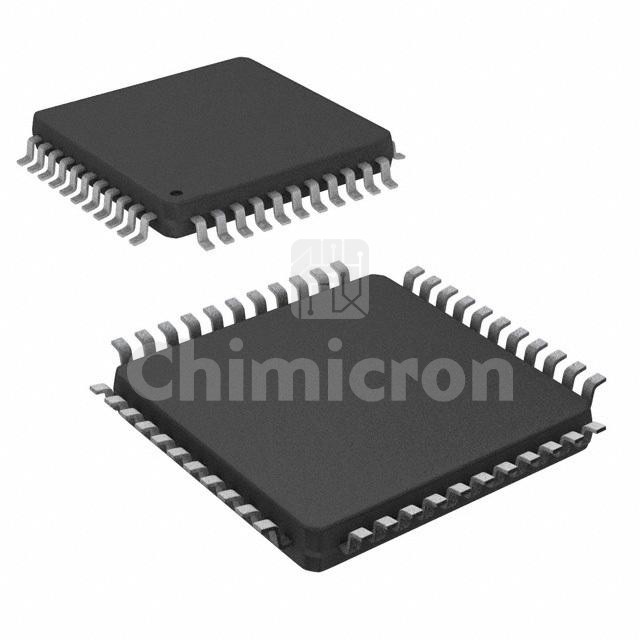

TMC260C-PA-T
Manufacturer: TRINAMIC Motion Control GmbH
Description: IC MTR DRV BIPOLAR 3-5.25V 44QFP
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:27720
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMC260C-PA-T TRINAMIC Motion Control GmbH at chimicron.com. We have 27720 pieces of TMC260C-PA-T in stock available now. Submit an inquiry for TMC260C-PA-T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceSPI, Step/Direction
TechnologyPower MOSFET
Step Resolution1 ~ 1/256
ApplicationsGeneral Purpose
Current - Output2A (Max)
Voltage - Supply3V ~ 5.25V
Voltage - Load9V ~ 39V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case44-LQFP
Supplier Device Package44-PQFP (10x10)
