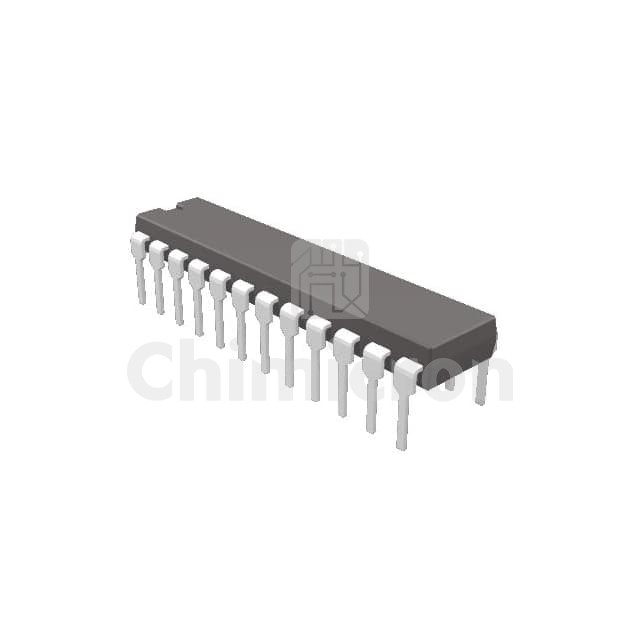

LS7290
Manufacturer: LSI/CSI
Description: STEPPER MOTOR CONTROLLER
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LS7290 LSI/CSI at chimicron.com. We have 100000 pieces of LS7290 in stock available now. Submit an inquiry for LS7290 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Motor Type - StepperBipolar, Unipolar
Motor Type - AC, DC-
FunctionController - Commutation, Direction Management
Output ConfigurationHalf Bridge (2)
InterfacePWM
TechnologyPower MOSFET
Step Resolution1, 1/2
ApplicationsGeneral Purpose
Current - Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load-
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case24-DIP (0.600", 15.24mm)
Supplier Device Package24-DIP
