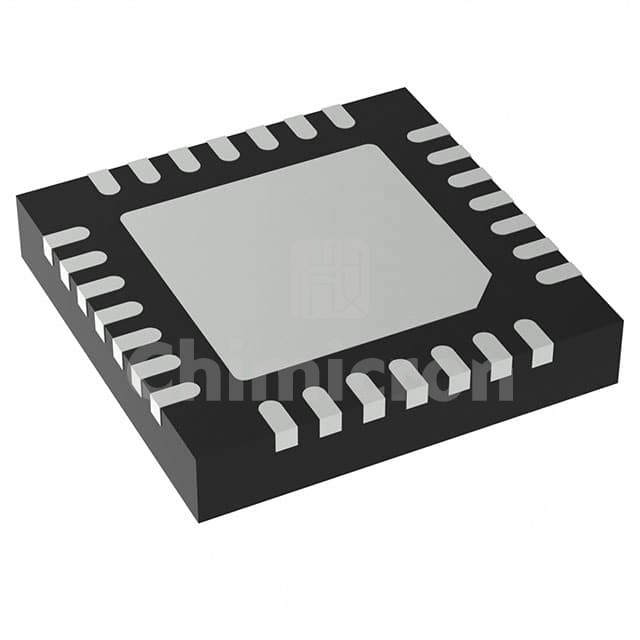

TMC2209-LA-T
Manufacturer: TRINAMIC Motion Control GmbH
Description: IC MTR DRV 4.75-28V QFN28
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: stallGuard™
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMC2209-LA-T TRINAMIC Motion Control GmbH at chimicron.com. We have 21000 pieces of TMC2209-LA-T in stock available now. Submit an inquiry for TMC2209-LA-T or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesstallGuard™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationStep/Direction
InterfaceStep/Direction, UART
TechnologyPower MOSFET
Step Resolution1 ~ 1/256
ApplicationsAutomation Control
Current - Output2A
Voltage - Supply4.8V ~ 5.25V
Voltage - Load5.5V ~ 29V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case28-VFQFN Exposed Pad
Supplier Device Package28-QFN (5x5)
