TMC2300-LA-T
Manufacturer: TRINAMIC Motion Control GmbH
Description: LOW VOLTAGE MOTOR DRIVER 2-11V Q
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: stallGuard™
In Stock:6195
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMC2300-LA-T TRINAMIC Motion Control GmbH at chimicron.com. We have 6195 pieces of TMC2300-LA-T in stock available now. Submit an inquiry for TMC2300-LA-T or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesstallGuard™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Motor Type - Stepper-
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationStep/Direction
InterfaceStep/Direction, UART
TechnologyPower MOSFET
Step Resolution1 ~ 1/256
ApplicationsAutomation Control, Industrial, Medical
Current - Output1.2A
Voltage - Supply2V ~ 11V
Voltage - Load1.65V ~ 1.95V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

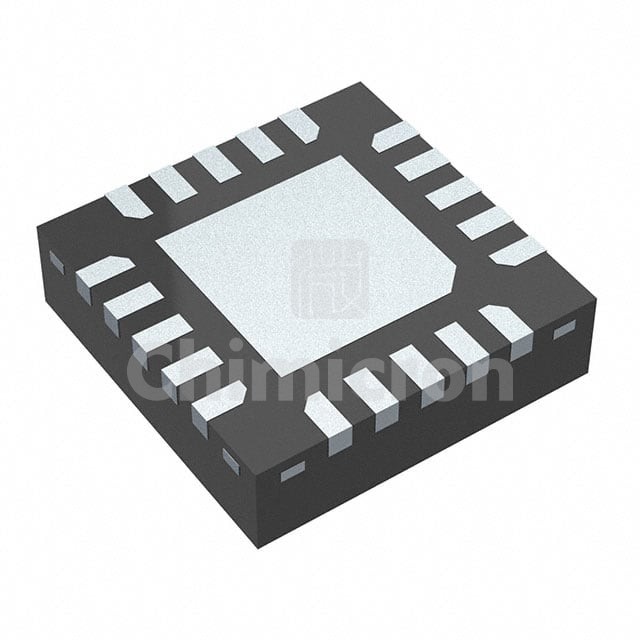

Package / Case20-VFQFN Exposed Pad
Supplier Device Package20-QFN (3x3)
