MAX16814AUP+T
Manufacturer: Maxim Integrated
Description: IC LED DRIVER CTRLR DIM 20TSSOP
Category : Integrated Circuits
Family: PMIC - LED Drivers
Series: -
In Stock:789
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX16814AUP+T Maxim Integrated at chimicron.com. We have 789 pieces of MAX16814AUP+T in stock available now. Submit an inquiry for MAX16814AUP+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
TypeDC DC Controller
TopologySEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)No
Number of Outputs4
Voltage - Supply (Min)4.75V
Voltage - Supply (Max)40V
Voltage - Output-
Current - Output / Channel150mA
Frequency200kHz ~ 2MHz
DimmingPWM
ApplicationsBacklight, Lighting
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

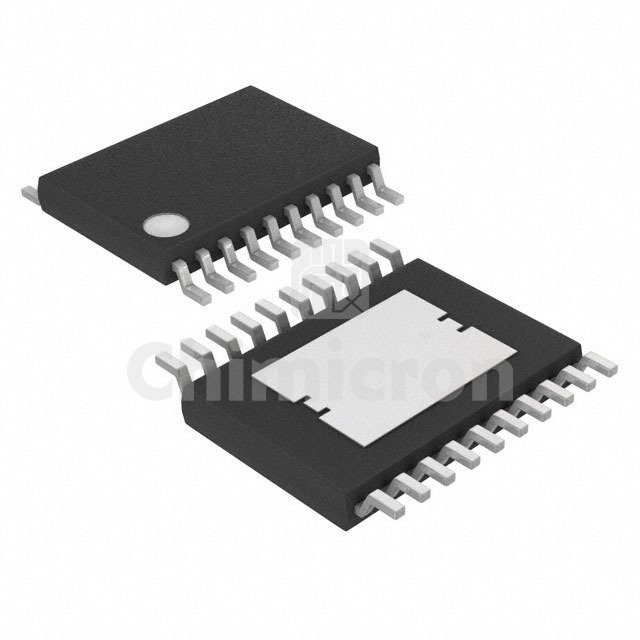

Package / Case20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package20-TSSOP-EP
