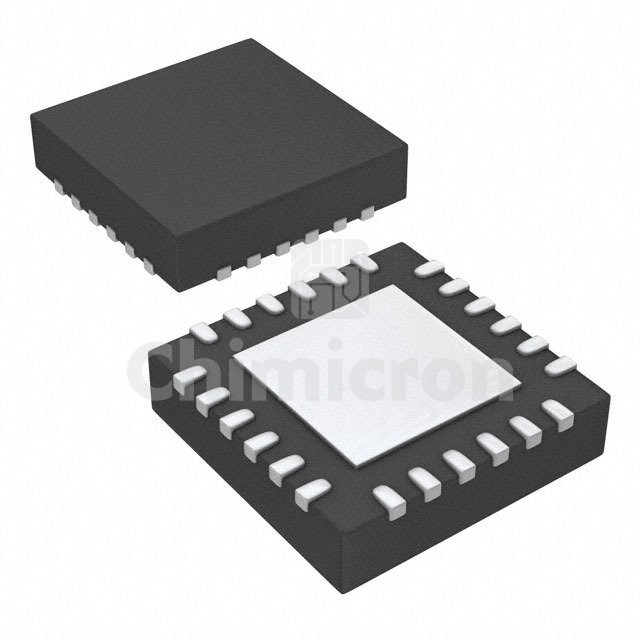

LP8556SQX-E09/NOPB
Manufacturer: Texas
Description: IC LED DRIVER RGLTR DIM 24WQFN
Category : Integrated Circuits
Family: PMIC - LED Drivers
Series: -
In Stock:52500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LP8556SQX-E09/NOPB Texas at chimicron.com. We have 52500 pieces of LP8556SQX-E09/NOPB in stock available now. Submit an inquiry for LP8556SQX-E09/NOPB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
TypeDC DC Regulator
TopologyStep-Up (Boost)
Internal Switch(s)Yes
Number of Outputs6
Voltage - Supply (Min)2.7V
Voltage - Supply (Max)20V
Voltage - Output16V ~ 34.5V
Current - Output / Channel25mA
Frequency312kHz, 625kHz, 1250kHz
DimmingPWM
ApplicationsBacklight
Operating Temperature-30°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case24-WFQFN Exposed Pad
Supplier Device Package24-WQFN (4x4)
