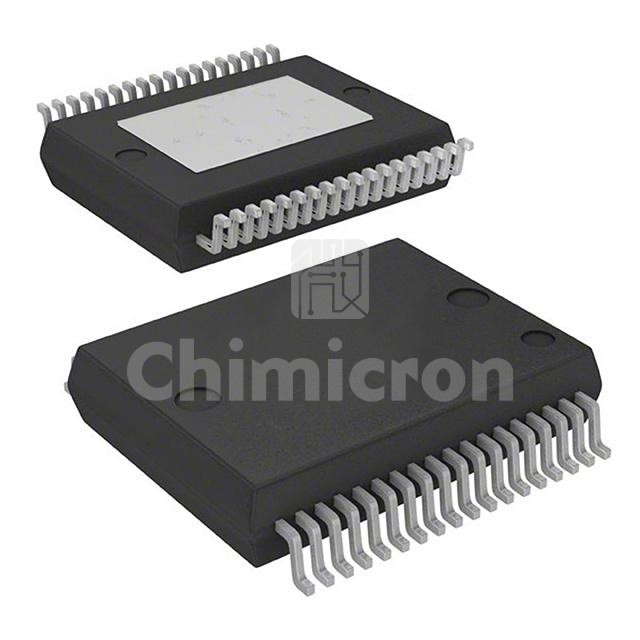

L99SD01TR-E
Manufacturer: STMicroelectronics
Description: IC SOLENOID DRIVER POWERSSO36
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:395920
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L99SD01TR-E STMicroelectronics at chimicron.com. We have 395920 pieces of L99SD01TR-E in stock available now. Submit an inquiry for L99SD01TR-E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsSolenoids
InterfaceI²C, PWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)150mOhm LS (Max), 150mOhm HS (Max)
Current - Output / Channel14A
Current - Peak Output-
Voltage - Supply6V ~ 28V
Voltage - Load45V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionCurrent Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device PackagePowerSSO-36
