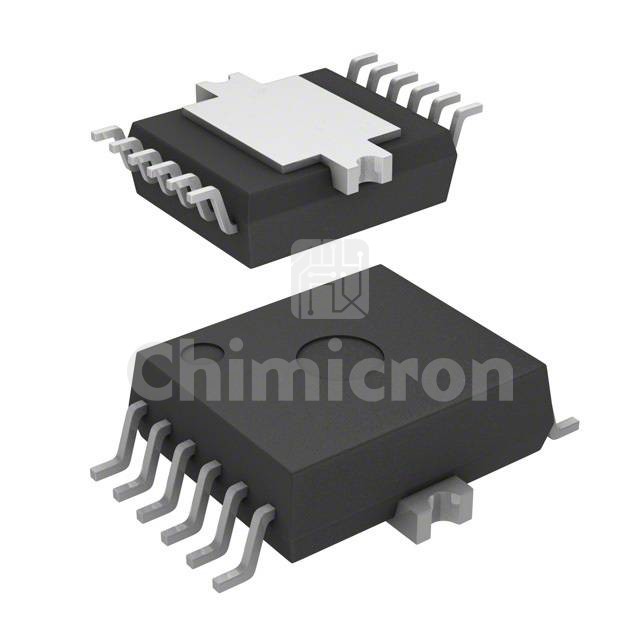

TLE9201SGAUMA1
Manufacturer: IR (Infineon Technologies)
Description: IC DRIVER 12DSO
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: Automotive, AEC-Q100
In Stock:2310
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLE9201SGAUMA1 IR (Infineon Technologies) at chimicron.com. We have 2310 pieces of TLE9201SGAUMA1 in stock available now. Submit an inquiry for TLE9201SGAUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfacePWM, SPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)100mOhm LS, 100mOhm HS
Current - Output / Channel6A
Current - Peak Output-
Voltage - Supply5V ~ 28V
Voltage - Load5V ~ 28V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOpen Load Detect, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device PackagePG-DSO-12-17
