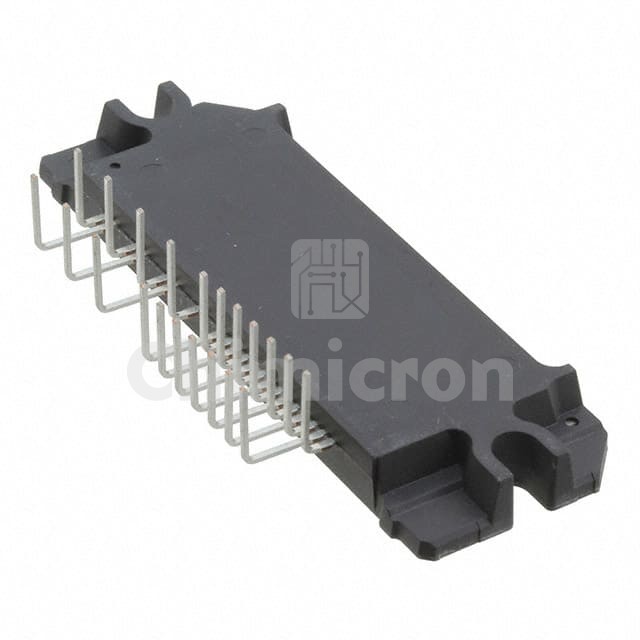

STK554U362A-E
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC BRIDGE DRIVER PAR 29SIP
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:2625
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STK554U362A-E Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2625 pieces of STK554U362A-E in stock available now. Submit an inquiry for STK554U362A-E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel10A
Current - Peak Output20A
Voltage - Supply12.5V ~ 17.5V
Voltage - Load450V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit, Status Flag
Fault ProtectionCurrent Limiting, Shoot-Through, UVLO
Mounting TypeThrough Hole
Package / Case29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package21-SIP
