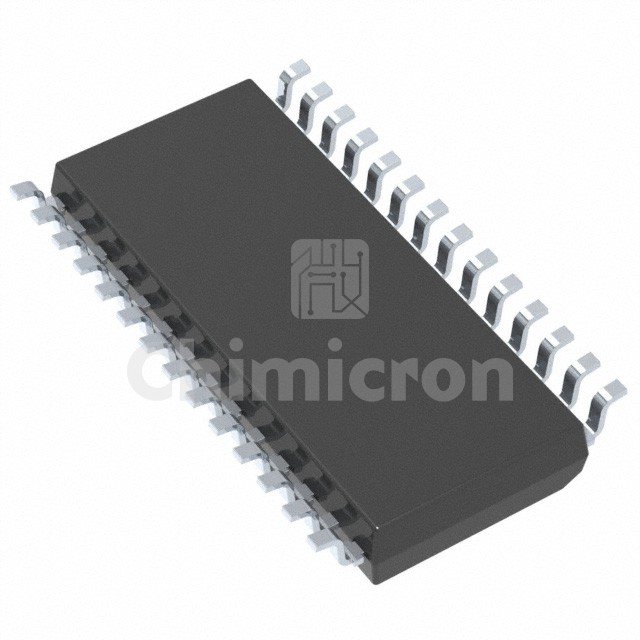

STDRIVE101
Manufacturer: STMicroelectronics
Description: GATE DRIVER
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STDRIVE101 STMicroelectronics at chimicron.com. We have 50000 pieces of STDRIVE101 in stock available now. Submit an inquiry for STDRIVE101 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfaceAnalog, Logic
Load TypeCapacitive and Resistive
TechnologyPower MOSFET, IGBT
Rds On (Typ)35Ohm
Current - Output / Channel-
Current - Peak Output430mA
Voltage - Supply9V ~ 20V
Voltage - Load580V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Current, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
