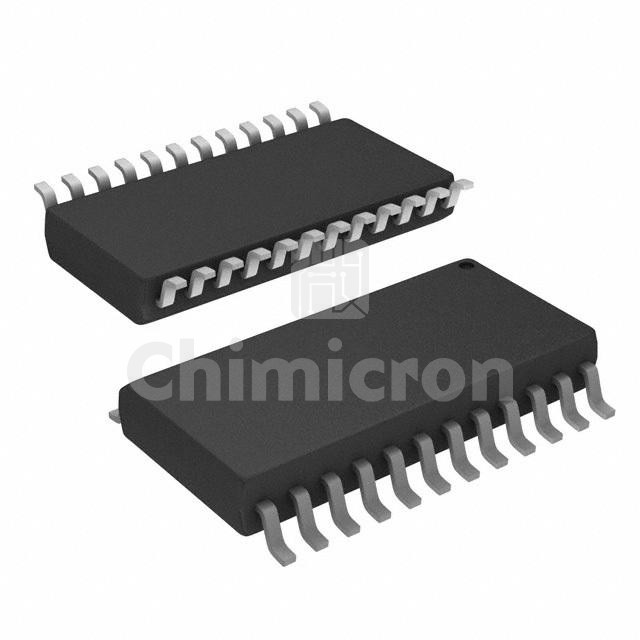

L6207D
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 24SOIC
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:120000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6207D STMicroelectronics at chimicron.com. We have 120000 pieces of L6207D in stock available now. Submit an inquiry for L6207D or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Stepper Motors, Voltage Regulators
InterfaceLogic
Load TypeInductive
TechnologyDMOS
Rds On (Typ)300mOhm
Current - Output / Channel2.8A
Current - Peak Output5.6A
Voltage - Supply8V ~ 52V
Voltage - Load8V ~ 52V
Operating Temperature-25°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case24-SOIC (0.295", 7.50mm Width)
Supplier Device Package24-SO
