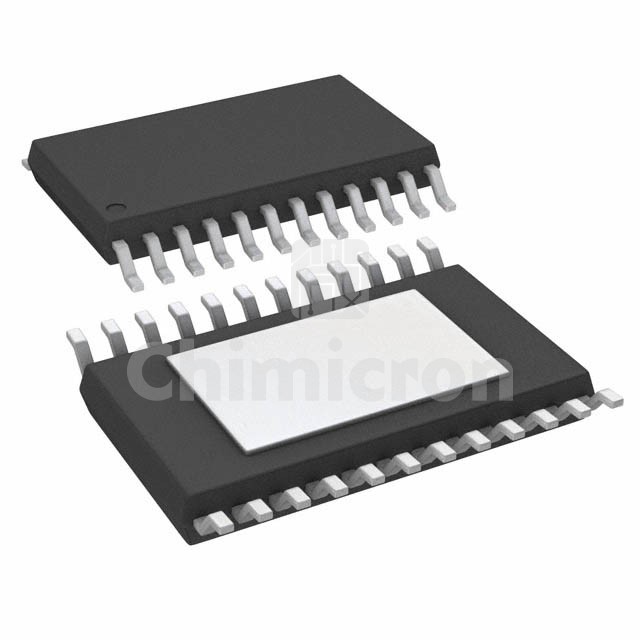

TLE94112ELXUMA1
Manufacturer: IR (Infineon Technologies)
Description: IC DRIVER HALF-BRIDGE 24SSOP
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLE94112ELXUMA1 IR (Infineon Technologies) at chimicron.com. We have 10500 pieces of TLE94112ELXUMA1 in stock available now. Submit an inquiry for TLE94112ELXUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (12)
ApplicationsAC Motors, DC Motors, General Purpose
InterfaceSPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)850mOhm LS, 850mOhm HS
Current - Output / Channel500mA
Current - Peak Output2A
Voltage - Supply3V ~ 5.5V
Voltage - Load5.5V ~ 20V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOver Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-SSOP-24-4
