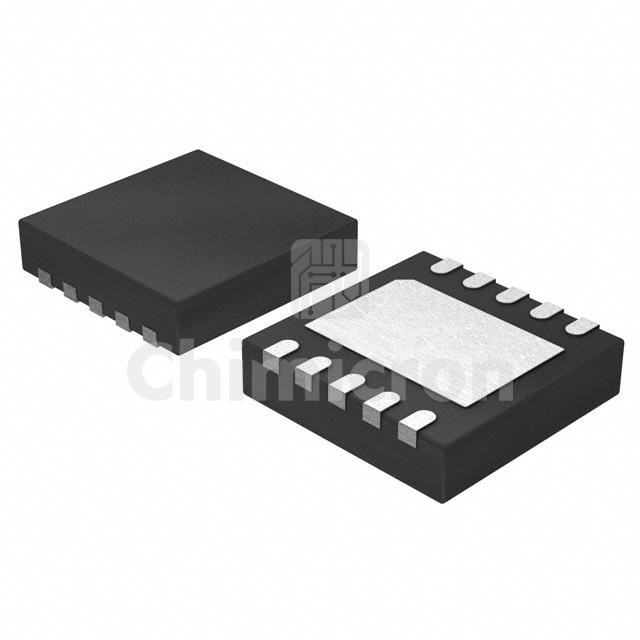

MAX13256ATB+T
Manufacturer: Maxim Integrated
Description: IC TRANSFORMER HBRIDGE 10TDFN
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:77385
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX13256ATB+T Maxim Integrated at chimicron.com. We have 77385 pieces of MAX13256ATB+T in stock available now. Submit an inquiry for MAX13256ATB+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsTransformers
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)600mOhm LS, 1Ohm HS
Current - Output / Channel850mA
Current - Peak Output-
Voltage - Supply8V ~ 36V
Voltage - Load8V ~ 36V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesInternal Oscillator, Status Flag, Watchdog Timer
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device Package10-TDFN-EP (3x3)
