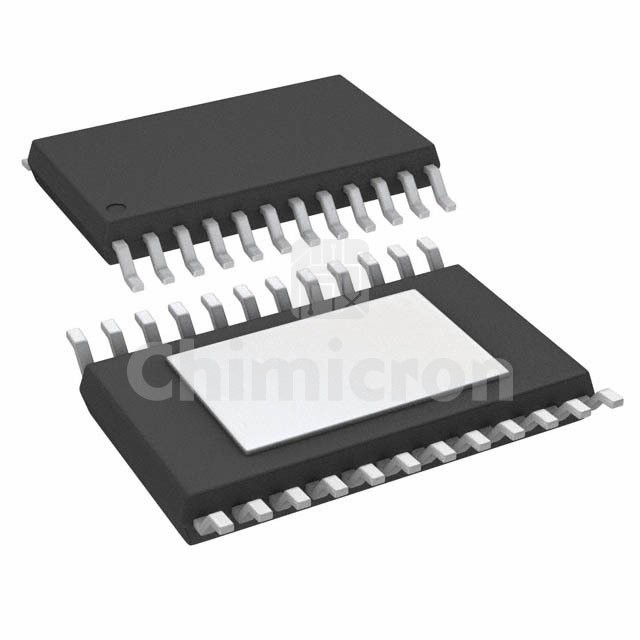

DRV8904QPWPRQ1
Manufacturer: Texas
Description: AUTO MULTI-CHANNEL HALF BRIDGER
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:22000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8904QPWPRQ1 Texas at chimicron.com. We have 22000 pieces of DRV8904QPWPRQ1 in stock available now. Submit an inquiry for DRV8904QPWPRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, General Purpose
InterfaceLogic, PWM, SPI
Load TypeInductive, Capacitive, Resistive
TechnologyMOSFET (Metal Oxide)
Rds On (Typ)750mOhm LS, 750mOhm HS
Current - Output / Channel6A
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load3V ~ 5.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesCharge Pump, Slew Rate Controlled
Fault ProtectionOver Current, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package24-HTSSOP
