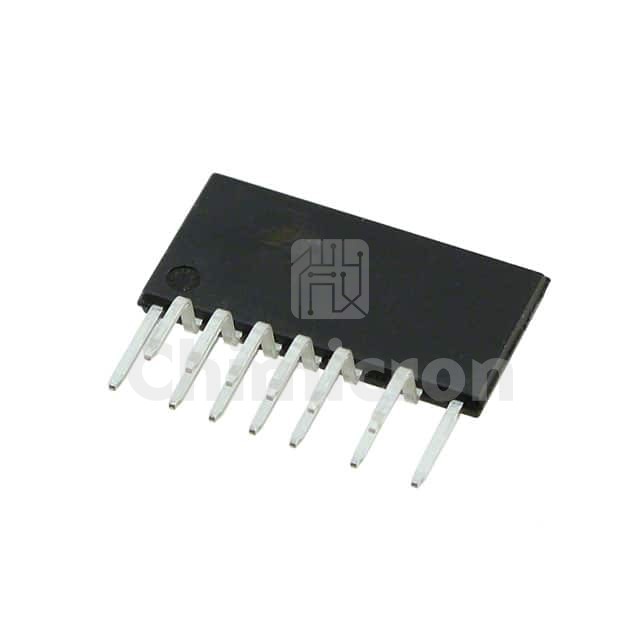

LCS703HG
Manufacturer: Power Integrations
Description: IC LLC CTRL MFET 275W ESIP16C
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: HiperLCS™
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LCS703HG Power Integrations at chimicron.com. We have 50000 pieces of LCS703HG in stock available now. Submit an inquiry for LCS703HG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiperLCS™
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsGeneral Purpose
InterfaceOn/Off
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)600mOhm
Current - Output / Channel-
Current - Peak Output12.9A
Voltage - Supply11.4V ~ 15V
Voltage - Load11.4V ~ 15V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesAuto Restart, Slew Rate Controlled
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeThrough Hole
Package / Case16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package16-ESIP
