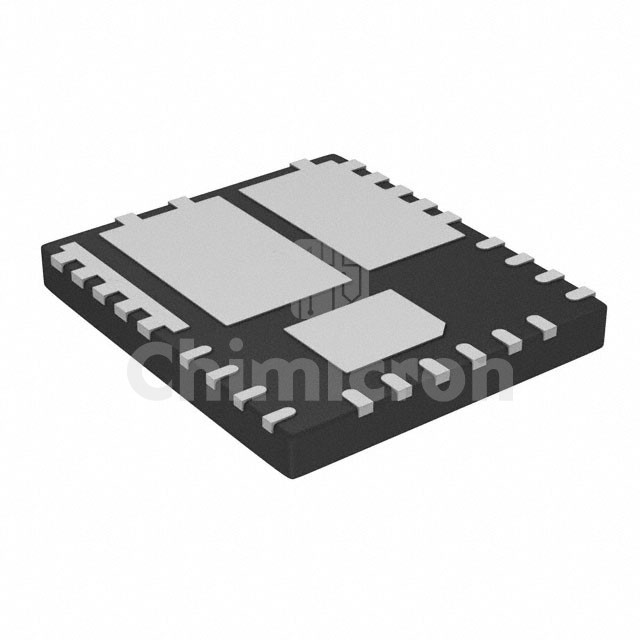

IRSM005-800MHTR
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRIVER 40V QFN
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: µIPM™
In Stock:111200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRSM005-800MHTR IR (Infineon Technologies) at chimicron.com. We have 111200 pieces of IRSM005-800MHTR in stock available now. Submit an inquiry for IRSM005-800MHTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesµIPM™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsAC Motors, DC Motors, DC-DC Converters, General Purpose
InterfaceLogic
Load TypeInductive, Capacitive
TechnologyPower MOSFET
Rds On (Typ)2.7mOhm
Current - Output / Channel80A
Current - Peak Output-
Voltage - Supply10V ~ 20V
Voltage - Load40V (Max)
Operating Temperature150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case27-PowerVQFN
Supplier Device Package27-PQFN (7x8)
