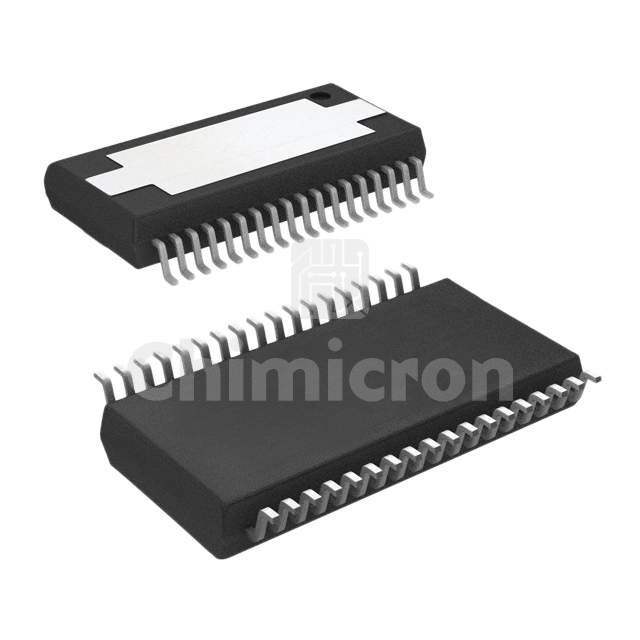

DRV8332DKD
Manufacturer: Texas
Description: IC BRIDGE DRIVER PAR 36HSSOP
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8332DKD Texas at chimicron.com. We have 2100 pieces of DRV8332DKD in stock available now. Submit an inquiry for DRV8332DKD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)80mOhm LS, 80mOhm HS
Current - Output / Channel8A
Current - Peak Output13A
Voltage - Supply10.8V ~ 13.2V
Voltage - Load0V ~ 52.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit, Status Flag
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package36-HSSOP
