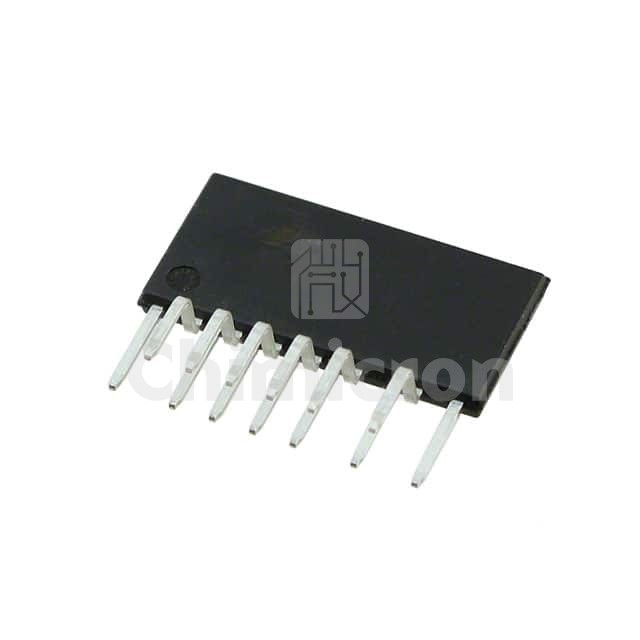

LCS701HG
Manufacturer: Power Integrations
Description: IC LLC CTRL MFET 170W ESIP16C
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: HiperLCS™
In Stock:2113
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LCS701HG Power Integrations at chimicron.com. We have 2113 pieces of LCS701HG in stock available now. Submit an inquiry for LCS701HG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiperLCS™
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsGeneral Purpose
InterfaceOn/Off
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)1Ohm
Current - Output / Channel-
Current - Peak Output7.7A
Voltage - Supply11.4V ~ 15V
Voltage - Load11.4V ~ 15V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesAuto Restart, Slew Rate Controlled
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeThrough Hole
Package / Case16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package16-ESIP
