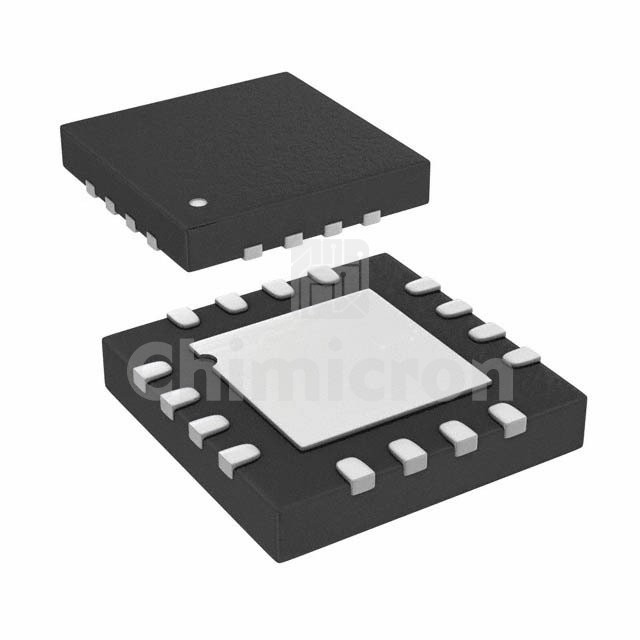

ADG5208BCPZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MUX 8CH LATCHUP PROOF 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:75649
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG5208BCPZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 75649 pieces of ADG5208BCPZ-RL7 in stock available now. Submit an inquiry for ADG5208BCPZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits1
On-State Resistance (Max)160Ohm
Channel-to-Channel Matching (ΔRon)3.5Ohm
Voltage - Supply, Single (V+)9V ~ 40V
Voltage - Supply, Dual (V±)±9V ~ 22V
Switch Time (Ton, Toff) (Max)170ns, 140ns
-3db Bandwidth60MHz
Charge Injection0.3pC
Channel Capacitance (CS(off), CD(off))2.8pF, 33pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-WQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-WQ (4x4)
