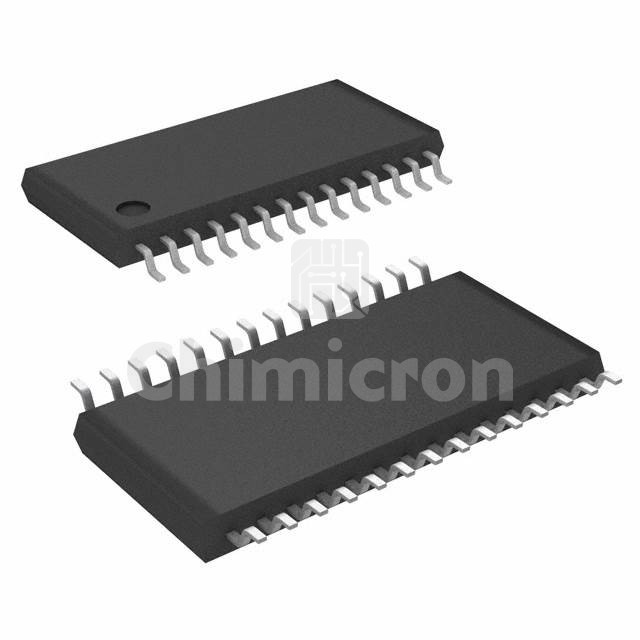

ADG1407BRUZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 8X1 28TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:197
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1407BRUZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 197 pieces of ADG1407BRUZ in stock available now. Submit an inquiry for ADG1407BRUZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits2
On-State Resistance (Max)11.5Ohm
Channel-to-Channel Matching (ΔRon)550mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)110ns, 120ns
-3db Bandwidth110MHz
Charge Injection10pC
Channel Capacitance (CS(off), CD(off))8pF, 45pF
Current - Leakage (IS(off)) (Max)250pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package28-TSSOP
