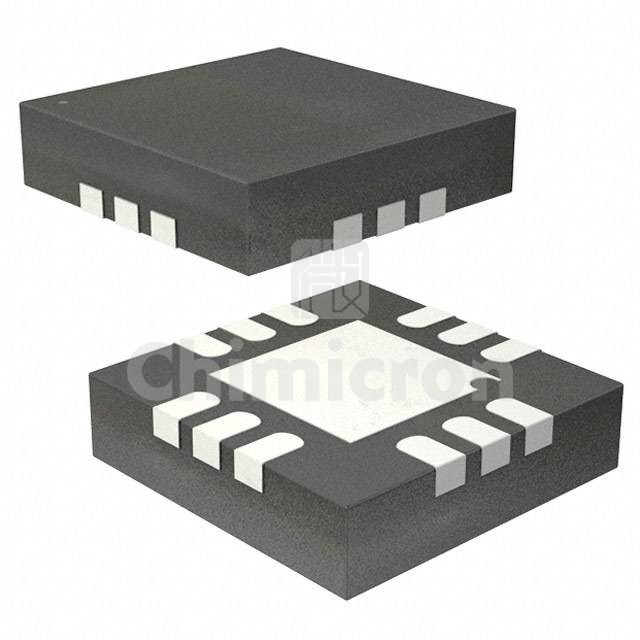

ADG1236YCPZ-500RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH DUAL SPDT 12LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:5460
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1236YCPZ-500RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 5460 pieces of ADG1236YCPZ-500RL7 in stock available now. Submit an inquiry for ADG1236YCPZ-500RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)190Ohm
Channel-to-Channel Matching (ΔRon)3.5Ohm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)150ns, 90ns
-3db Bandwidth1GHz
Charge Injection-1pC
Channel Capacitance (CS(off), CD(off))1.6pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case12-WFQFN Exposed Pad, CSP
Supplier Device Package12-LFCSP-WQ (3x3)
