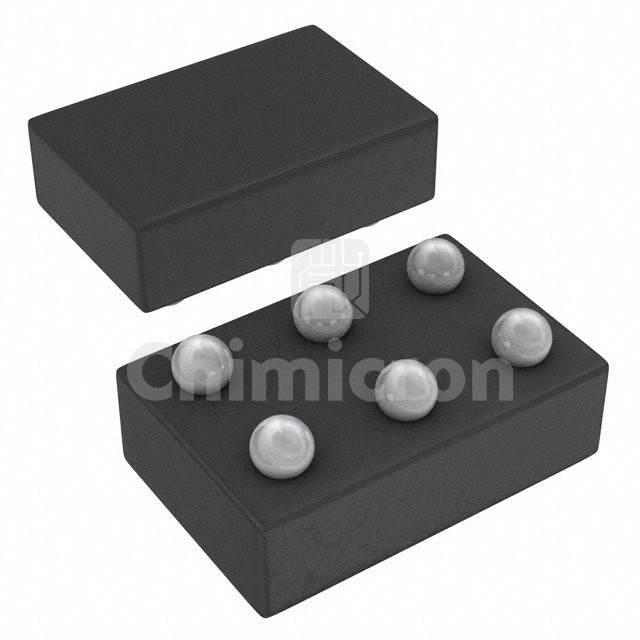

TS5A12301EYFPR
Manufacturer: Texas
Description: IC SWITCH SPDT 6DSBGA
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:36000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TS5A12301EYFPR Texas at chimicron.com. We have 36000 pieces of TS5A12301EYFPR in stock available now. Submit an inquiry for TS5A12301EYFPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)750mOhm
Channel-to-Channel Matching (ΔRon)50mOhm
Voltage - Supply, Single (V+)2.25V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)225ns, 215ns
-3db Bandwidth55MHz
Charge Injection97pC
Channel Capacitance (CS(off), CD(off))28pF
Current - Leakage (IS(off)) (Max)20nA
Crosstalk-63dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case6-XFBGA, DSBGA
Supplier Device Package6-DSBGA
