ADG659YCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 4:1 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:819
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG659YCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 819 pieces of ADG659YCPZ-REEL7 in stock available now. Submit an inquiry for ADG659YCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)75Ohm
Channel-to-Channel Matching (ΔRon)1.3Ohm
Voltage - Supply, Single (V+)2V ~ 12V
Voltage - Supply, Dual (V±)±2V ~ 6V
Switch Time (Ton, Toff) (Max)115ns, 45ns
-3db Bandwidth400MHz
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))4pF, 12pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

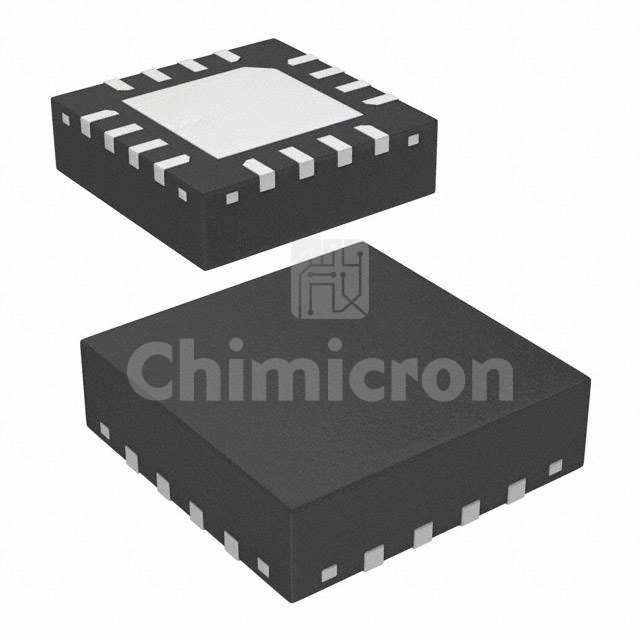

Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
