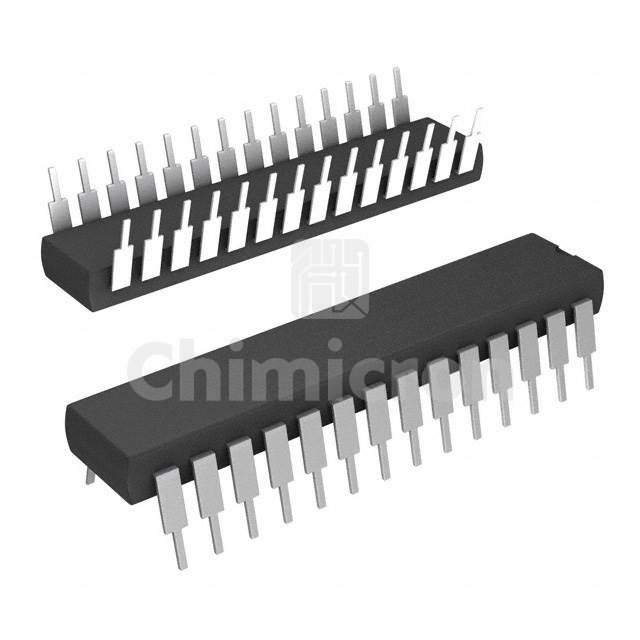

MAX306CPI+
Manufacturer: Maxim Integrated
Description: IC MULTIPLEXER 16X1 28DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX306CPI+ Maxim Integrated at chimicron.com. We have 500 pieces of MAX306CPI+ in stock available now. Submit an inquiry for MAX306CPI+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)100Ohm
Channel-to-Channel Matching (ΔRon)1.5Ohm
Voltage - Supply, Single (V+)5V ~ 30V
Voltage - Supply, Dual (V±)±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)200ns, 150ns
-3db Bandwidth-
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))8pF, 130pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-92dB @ 100kHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-PDIP
