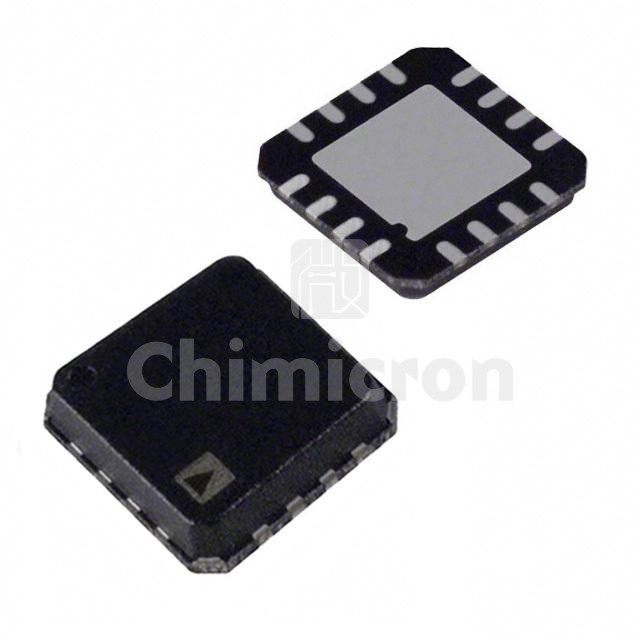

ADG1436YCPZ-REEL
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH SPDT DUAL 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1436YCPZ-REEL Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2100 pieces of ADG1436YCPZ-REEL in stock available now. Submit an inquiry for ADG1436YCPZ-REEL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)1.8Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)120ns, 130ns
-3db Bandwidth110MHz
Charge Injection-20pC
Channel Capacitance (CS(off), CD(off))23pF, 50pF
Current - Leakage (IS(off)) (Max)550pA
Crosstalk-80dB @ 100kHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
