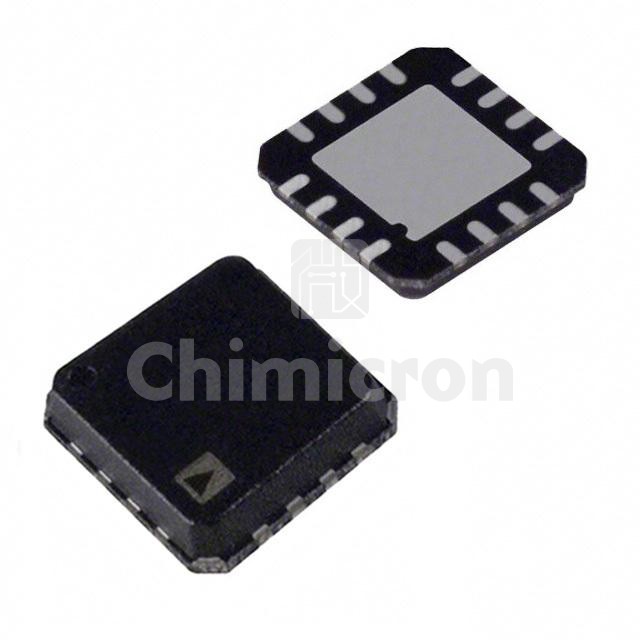

ADG1433YCPZ-REEL
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH TRIPLE SPDT 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1433YCPZ-REEL Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 10500 pieces of ADG1433YCPZ-REEL in stock available now. Submit an inquiry for ADG1433YCPZ-REEL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits3
On-State Resistance (Max)4.7Ohm
Channel-to-Channel Matching (ΔRon)500mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)170ns, 75ns
-3db Bandwidth200MHz
Charge Injection-50pC
Channel Capacitance (CS(off), CD(off))12pF, 22pF
Current - Leakage (IS(off)) (Max)300pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
