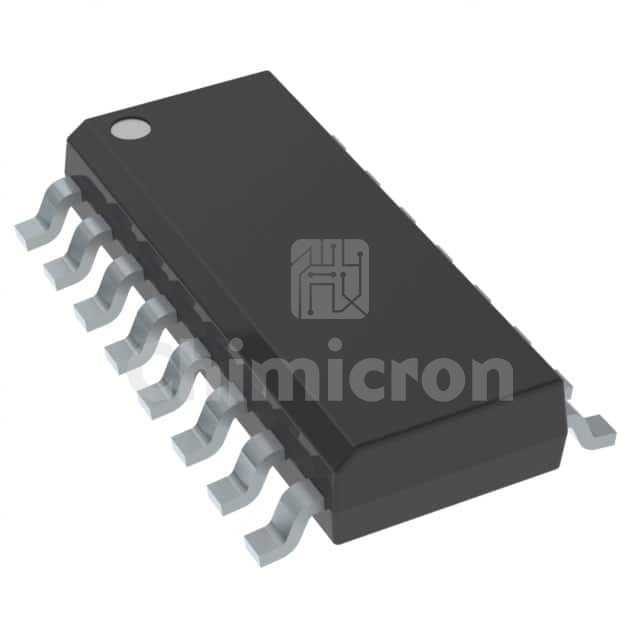

SN74LV4052ANSR
Manufacturer: Texas
Description: IC MULTIPLEXER DUAL 4X1 16SO
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:5775
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SN74LV4052ANSR Texas at chimicron.com. We have 5775 pieces of SN74LV4052ANSR in stock available now. Submit an inquiry for SN74LV4052ANSR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)75Ohm
Channel-to-Channel Matching (ΔRon)700mOhm
Voltage - Supply, Single (V+)2V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)14ns, 14ns
-3db Bandwidth50MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))0.5pF, 13.1pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-45dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.209", 5.30mm Width)
Supplier Device Package16-SO
