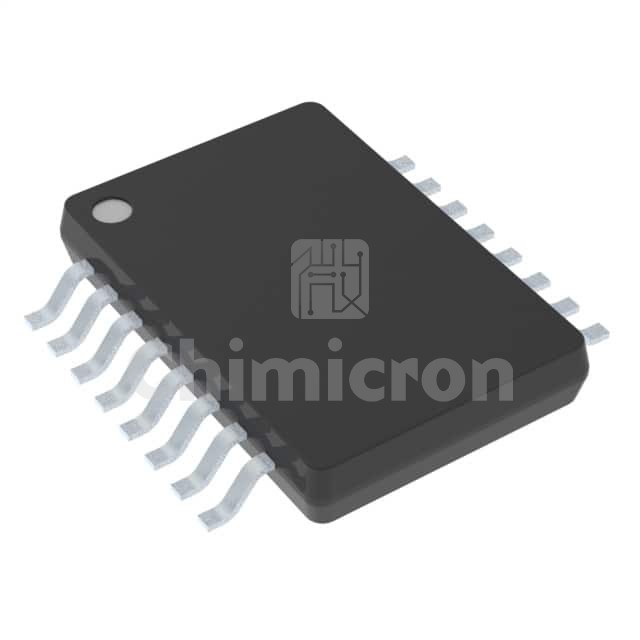

ADG1234YRUZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPDT 20TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1234YRUZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2100 pieces of ADG1234YRUZ in stock available now. Submit an inquiry for ADG1234YRUZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)190Ohm
Channel-to-Channel Matching (ΔRon)3.5Ohm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±5V ~ 16.5V
Switch Time (Ton, Toff) (Max)140ns, 45ns
-3db Bandwidth900MHz
Charge Injection0.5pC
Channel Capacitance (CS(off), CD(off))1.7pF, 1.8pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package20-TSSOP
