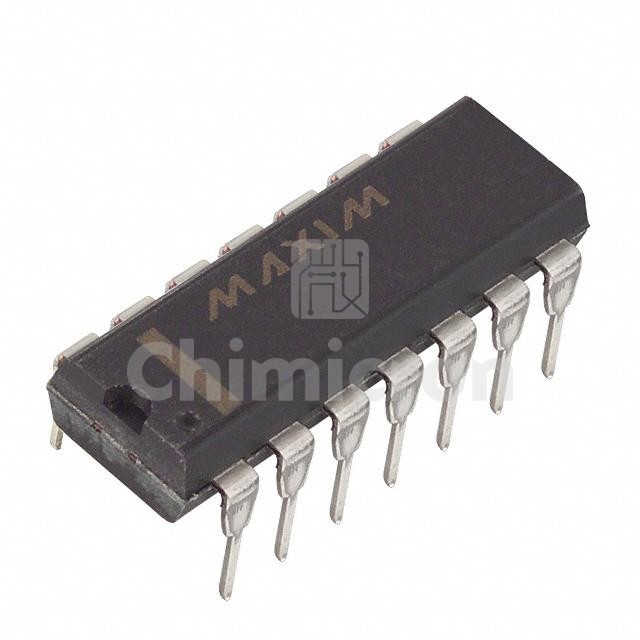

DG303ACJ+
Manufacturer: Maxim Integrated
Description: IC SWITCH DUAL SPDT 14DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:210
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG303ACJ+ Maxim Integrated at chimicron.com. We have 210 pieces of DG303ACJ+ in stock available now. Submit an inquiry for DG303ACJ+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)50Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±5V ~ 18V
Switch Time (Ton, Toff) (Max)300ns, 250ns
-3db Bandwidth-
Charge Injection12pC
Channel Capacitance (CS(off), CD(off))14pF, 14pF
Current - Leakage (IS(off)) (Max)5nA
Crosstalk-74dB @ 500kHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
