ADG1204YCPZ-500RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 4X1 12LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2625
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1204YCPZ-500RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2625 pieces of ADG1204YCPZ-500RL7 in stock available now. Submit an inquiry for ADG1204YCPZ-500RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits1
On-State Resistance (Max)190Ohm
Channel-to-Channel Matching (ΔRon)6Ohm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)85ns, 110ns
-3db Bandwidth800MHz
Charge Injection-0.7pC
Channel Capacitance (CS(off), CD(off))1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-80dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

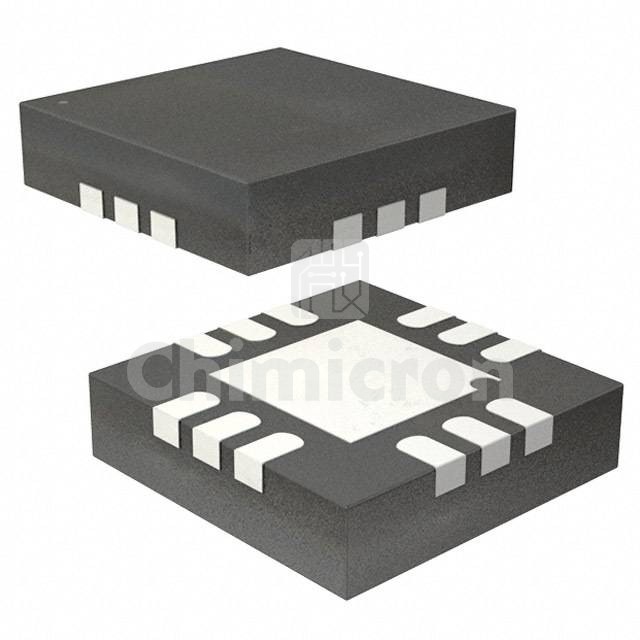

Package / Case12-WFQFN Exposed Pad, CSP
Supplier Device Package12-LFCSP-WQ (3x3)
