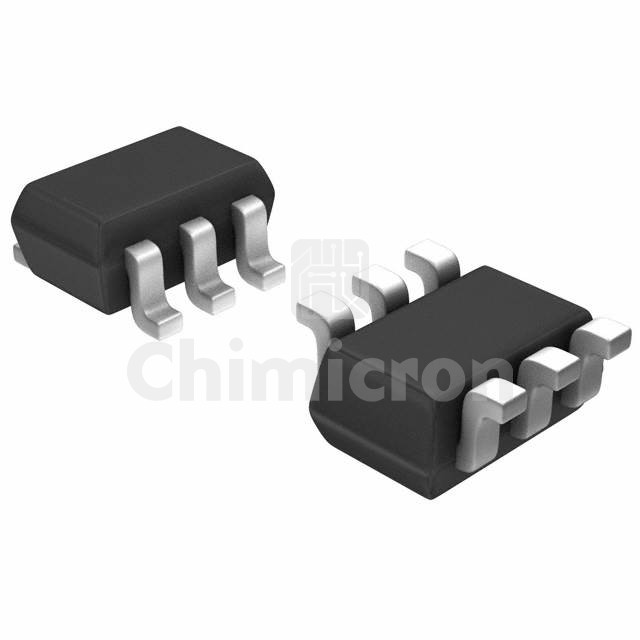

NC7SB3157P6X
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC SWITCH SPDT SC70-6
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:244650
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NC7SB3157P6X Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 244650 pieces of NC7SB3157P6X in stock available now. Submit an inquiry for NC7SB3157P6X or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)15Ohm
Channel-to-Channel Matching (ΔRon)150mOhm
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)5.2ns, 3.5ns
-3db Bandwidth250MHz
Charge Injection7pC
Channel Capacitance (CS(off), CD(off))6.5pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-54dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88 (SC-70-6)
