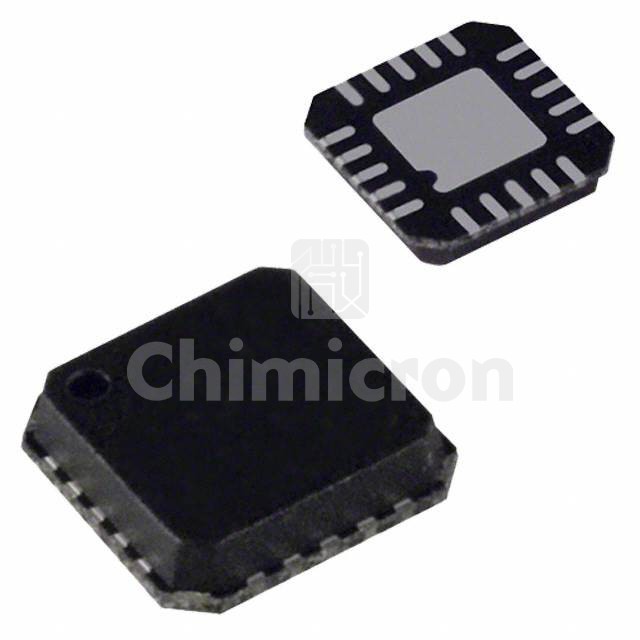

ADG783BCPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPST 20LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:16200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG783BCPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 16200 pieces of ADG783BCPZ in stock available now. Submit an inquiry for ADG783BCPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)4Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)11ns, 6ns (Typ)
-3db Bandwidth200MHz
Charge Injection3pC
Channel Capacitance (CS(off), CD(off))10pF, 10pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-90dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
