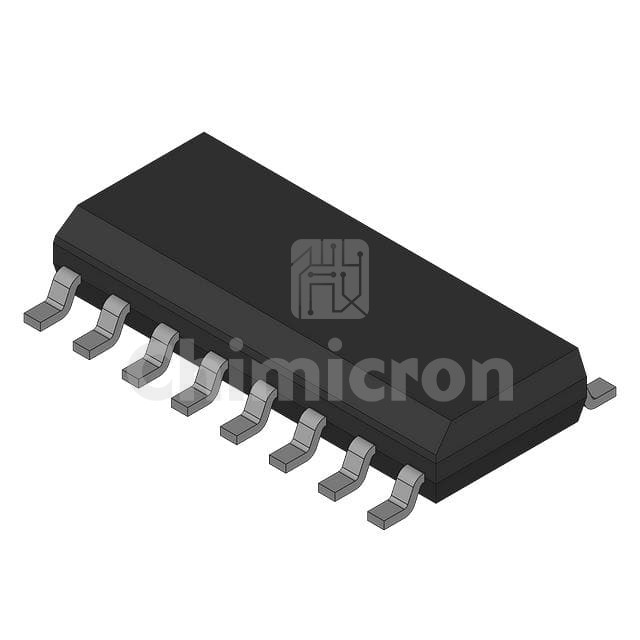

MAX309CSE
Manufacturer: Rochester Electronics
Description: 4-CHANNEL ANALOG MUX
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX309CSE Rochester Electronics at chimicron.com. We have 2000 pieces of MAX309CSE in stock available now. Submit an inquiry for MAX309CSE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)100Ohm
Channel-to-Channel Matching (ΔRon)1.5Ohm
Voltage - Supply, Single (V+)5V ~ 30V
Voltage - Supply, Dual (V±)±5V ~ 20V
Switch Time (Ton, Toff) (Max)150ns, 150ns
-3db Bandwidth-
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))3pF, 26pF
Current - Leakage (IS(off)) (Max)750pA
Crosstalk-92dB @ 100kHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
