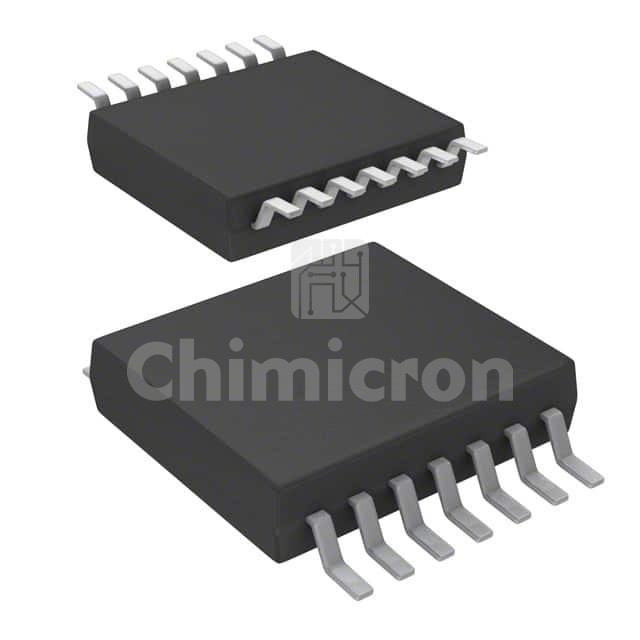

SN74LV4066APWR
Manufacturer: Texas
Description: IC SWITCH QUAD 1X1 14TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:68250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SN74LV4066APWR Texas at chimicron.com. We have 68250 pieces of SN74LV4066APWR in stock available now. Submit an inquiry for SN74LV4066APWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)75Ohm
Channel-to-Channel Matching (ΔRon)2Ohm
Voltage - Supply, Single (V+)2V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)12ns, 12ns
-3db Bandwidth50MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))0.5pF, 5.5pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-45dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package14-TSSOP
