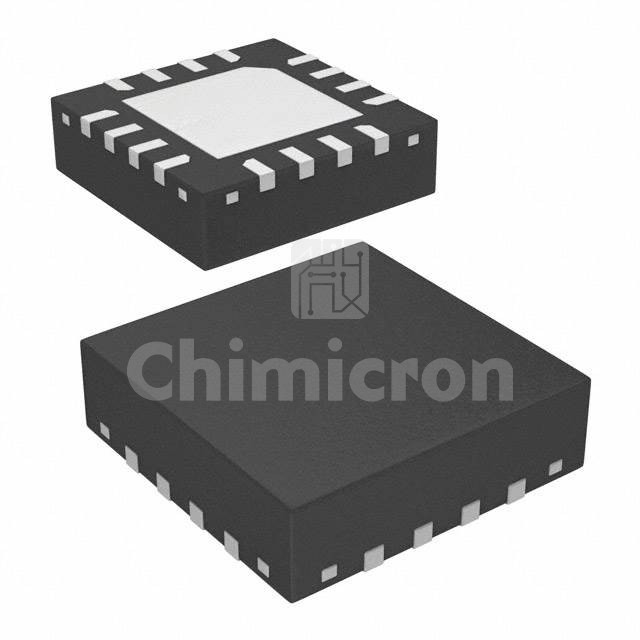

ADG659YCPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 4:1 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:630
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG659YCPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 630 pieces of ADG659YCPZ in stock available now. Submit an inquiry for ADG659YCPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)75Ohm
Channel-to-Channel Matching (ΔRon)1.3Ohm
Voltage - Supply, Single (V+)2V ~ 12V
Voltage - Supply, Dual (V±)±2V ~ 6V
Switch Time (Ton, Toff) (Max)115ns, 45ns
-3db Bandwidth400MHz
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))4pF, 12pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
