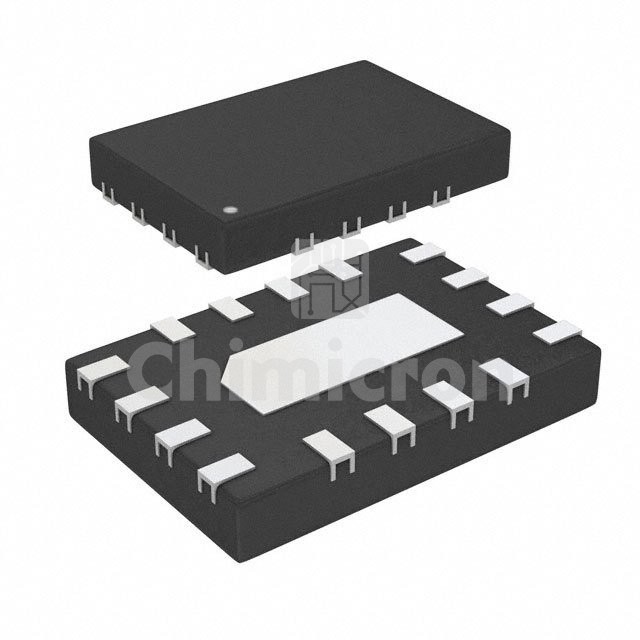

STG3692QTR
Manufacturer: STMicroelectronics
Description: IC SWITCH QUAD SPDT 16QFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STG3692QTR STMicroelectronics at chimicron.com. We have 300000 pieces of STG3692QTR in stock available now. Submit an inquiry for STG3692QTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)5.2Ohm
Channel-to-Channel Matching (ΔRon)300mOhm
Voltage - Supply, Single (V+)1.65V ~ 4.3V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)15ns, 13ns
-3db Bandwidth800MHz
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))5pF
Current - Leakage (IS(off)) (Max)20nA
Crosstalk-78dB @ 1MHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-UFQFN Exposed Pad
Supplier Device Package16-QFN (2.6x1.8)
