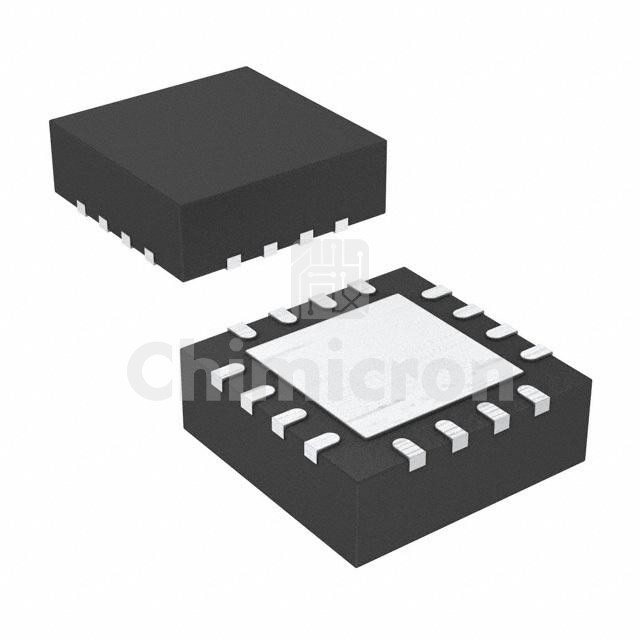

DG1409EEN-T1-GE4
Manufacturer: Vishay / Siliconix
Description: IC SWITCH DUAL 16QFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG1409EEN-T1-GE4 Vishay / Siliconix at chimicron.com. We have 1050 pieces of DG1409EEN-T1-GE4 in stock available now. Submit an inquiry for DG1409EEN-T1-GE4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit4:2
Number of Circuits2
On-State Resistance (Max)4.2Ohm
Channel-to-Channel Matching (ΔRon)270mOhm
Voltage - Supply, Single (V+)4.5V ~ 24V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)130ns, 105ns
-3db Bandwidth90MHz
Charge Injection103pC
Channel Capacitance (CS(off), CD(off))13pF, 43pF
Current - Leakage (IS(off)) (Max)550pA
Crosstalk-64dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad
Supplier Device Package16-QFN (4x4)
