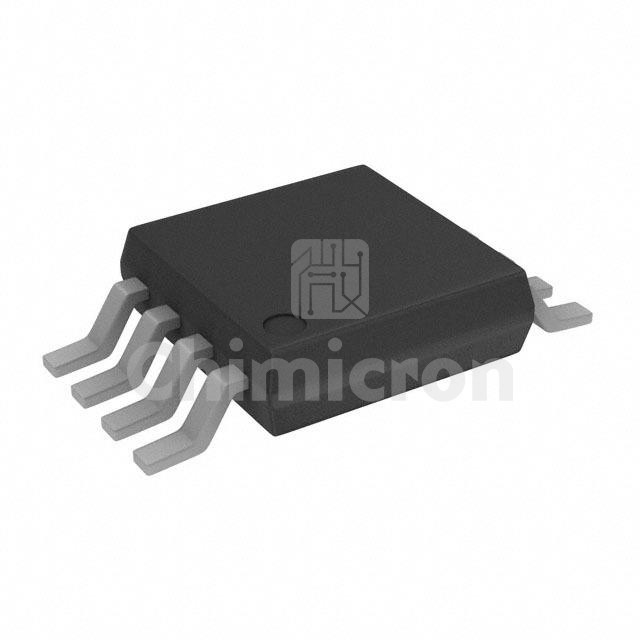

ADG1419BRMZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH 1 X SPDT 8MSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:235400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1419BRMZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 235400 pieces of ADG1419BRMZ in stock available now. Submit an inquiry for ADG1419BRMZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)2.4Ohm
Channel-to-Channel Matching (ΔRon)50mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)110ns, 140ns
-3db Bandwidth135MHz
Charge Injection-16pC
Channel Capacitance (CS(off), CD(off))19pF, 44pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-64dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-MSOP
