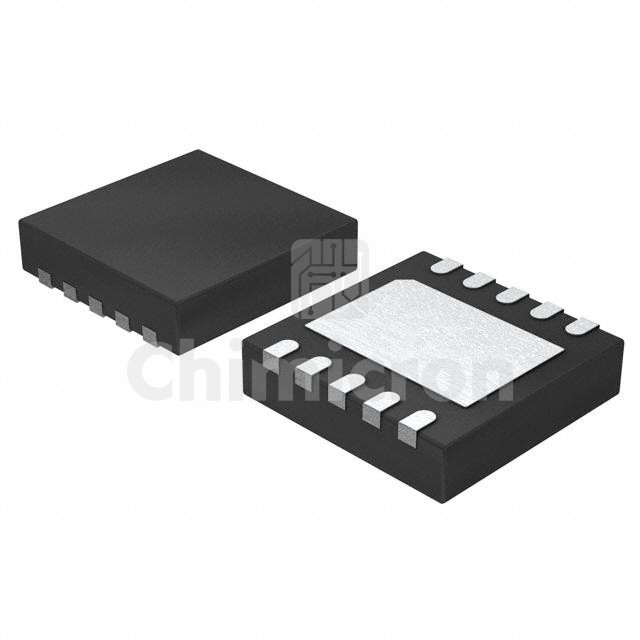

ADG787BCPZ-500RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MUX/DEMUX DUAL 2X1 10LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:525
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG787BCPZ-500RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 525 pieces of ADG787BCPZ-500RL7 in stock available now. Submit an inquiry for ADG787BCPZ-500RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)3Ohm
Channel-to-Channel Matching (ΔRon)20mOhm
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)19ns, 5ns
-3db Bandwidth145MHz
Charge Injection14pC
Channel Capacitance (CS(off), CD(off))16pF
Current - Leakage (IS(off)) (Max)50pA (Typ)
Crosstalk-110dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad, CSP
Supplier Device Package10-LFCSP-WD (3x3)
