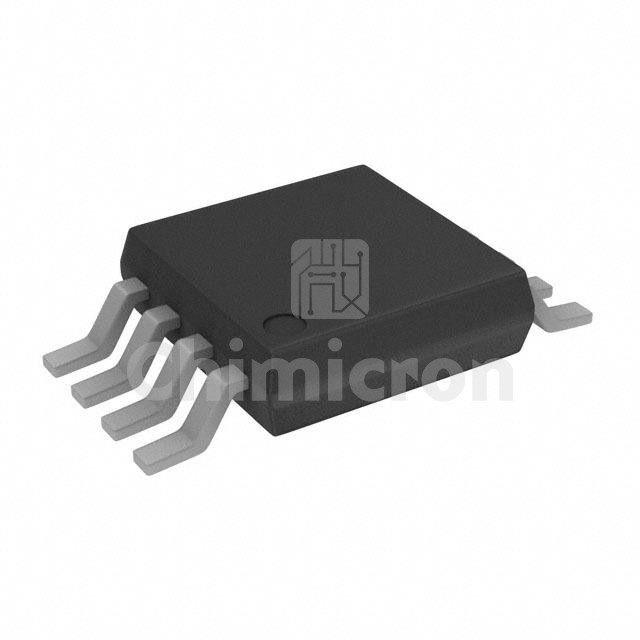

ADG1401BRMZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH SPST 1OHM RON 8MSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1401BRMZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2100 pieces of ADG1401BRMZ-REEL7 in stock available now. Submit an inquiry for ADG1401BRMZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits1
On-State Resistance (Max)1.3Ohm
Channel-to-Channel Matching (ΔRon)200mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)150ns, 150ns
-3db Bandwidth120MHz
Charge Injection-12pC
Channel Capacitance (CS(off), CD(off))36pF, 41pF
Current - Leakage (IS(off)) (Max)400pA
Crosstalk-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-MSOP
