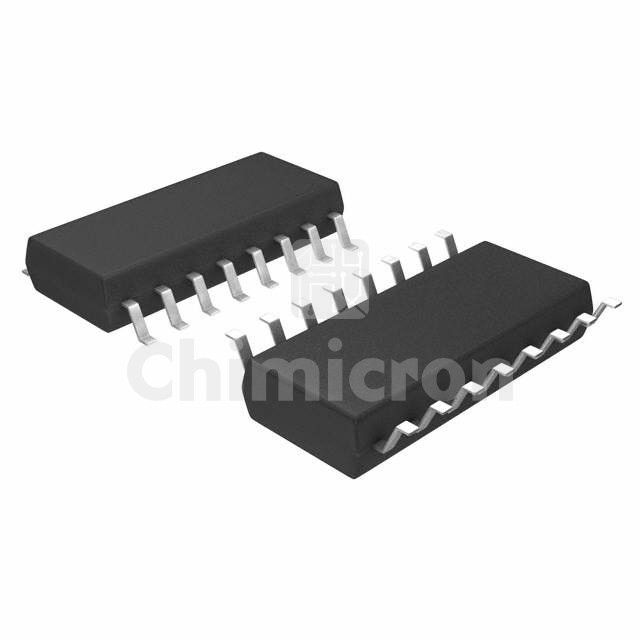

CD4052BNSR
Manufacturer: Texas
Description: IC MUX/DEMUX DUAL 4X1 16SO
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:418112
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CD4052BNSR Texas at chimicron.com. We have 418112 pieces of CD4052BNSR in stock available now. Submit an inquiry for CD4052BNSR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)240Ohm
Channel-to-Channel Matching (ΔRon)5Ohm
Voltage - Supply, Single (V+)3V ~ 20V
Voltage - Supply, Dual (V±)±2.5V ~ 9V
Switch Time (Ton, Toff) (Max)-
-3db Bandwidth25MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))0.2pF, 18pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-40dB @ 10MHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.209", 5.30mm Width)
Supplier Device Package16-SO
