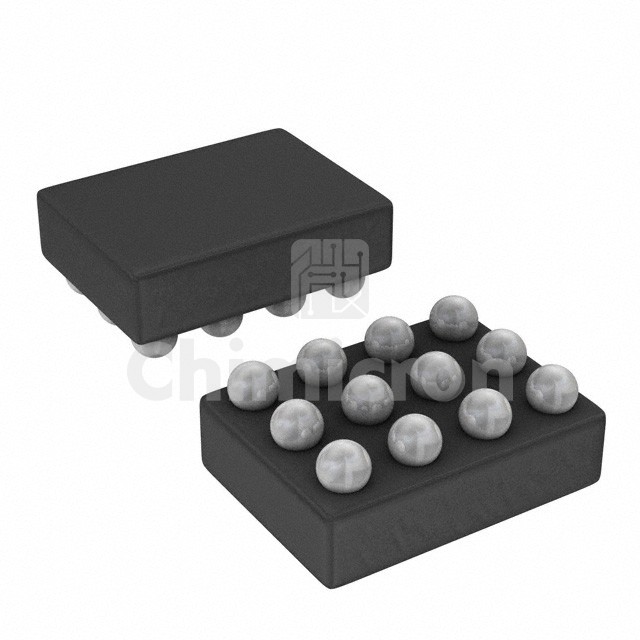

TS5A22366YFCR
Manufacturer: Texas
Description: IC SWITCH DUAL SPDT 12DSBGA
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:43500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TS5A22366YFCR Texas at chimicron.com. We have 43500 pieces of TS5A22366YFCR in stock available now. Submit an inquiry for TS5A22366YFCR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)1Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)2.25V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)374ns, 325ns
-3db Bandwidth32MHz
Charge Injection168pC
Channel Capacitance (CS(off), CD(off))48pF
Current - Leakage (IS(off)) (Max)50nA
Crosstalk-70dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case12-UFBGA, DSBGA
Supplier Device Package12-DSBGA (1.57x1.17)
