MAX14589EEWL+T
Manufacturer: Maxim Integrated
Description: IC ANALOG SWITCH DPDT 9WLP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:63000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX14589EEWL+T Maxim Integrated at chimicron.com. We have 63000 pieces of MAX14589EEWL+T in stock available now. Submit an inquiry for MAX14589EEWL+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitDPDT
Multiplexer/Demultiplexer Circuit2:2
Number of Circuits1
On-State Resistance (Max)380mOhm
Channel-to-Channel Matching (ΔRon)5mOhm
Voltage - Supply, Single (V+)1.6V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)10ms, 2.25ms
-3db Bandwidth200MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))25pF
Current - Leakage (IS(off)) (Max)400nA
Crosstalk-80dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

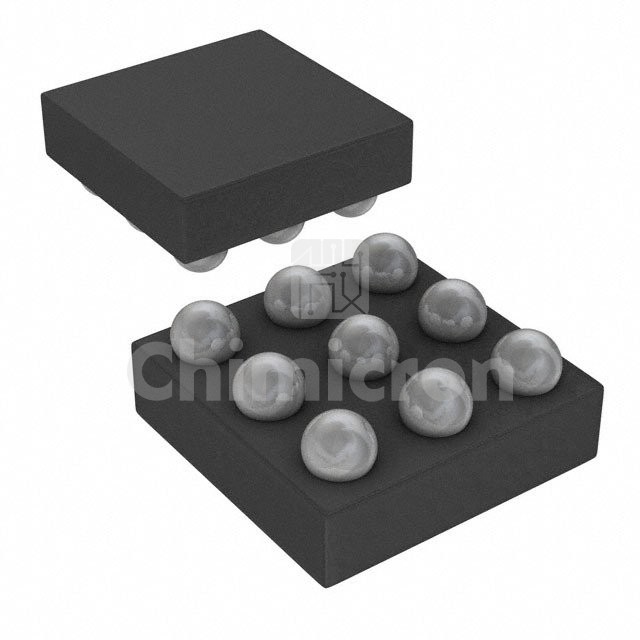

Package / Case9-WFBGA, WLBGA
Supplier Device Package9-WLP (1.26x1.26)
