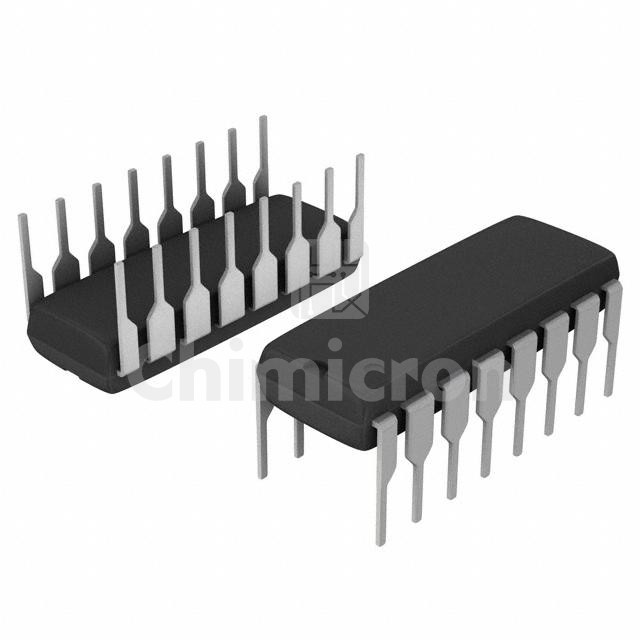

DG213DJ-E3
Manufacturer: Vishay / Siliconix
Description: IC SWITCH QUAD CMOS 16DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:21640
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG213DJ-E3 Vishay / Siliconix at chimicron.com. We have 21640 pieces of DG213DJ-E3 in stock available now. Submit an inquiry for DG213DJ-E3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)60Ohm
Channel-to-Channel Matching (ΔRon)1Ohm
Voltage - Supply, Single (V+)3V ~ 40V
Voltage - Supply, Dual (V±)±3V ~ 22V
Switch Time (Ton, Toff) (Max)130ns, 100ns
-3db Bandwidth-
Charge Injection1pC
Channel Capacitance (CS(off), CD(off))5pF, 5pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-95dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
