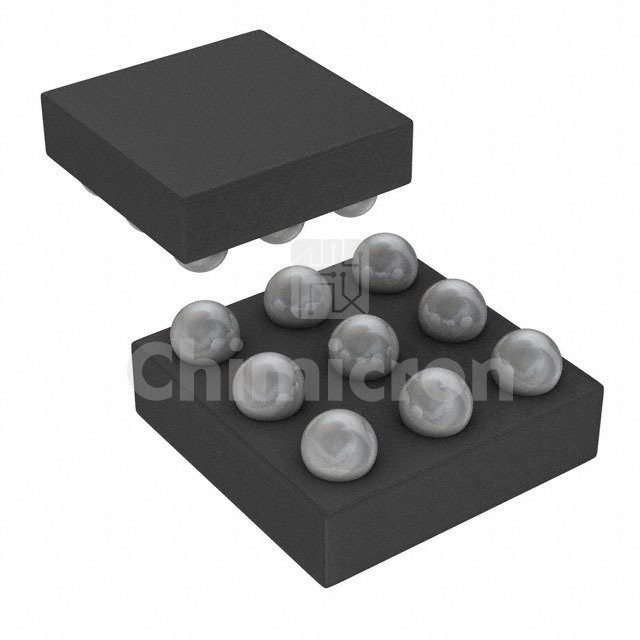

MAX14689EWL+T
Manufacturer: Maxim Integrated
Description: IC SWITCH ANALOG DPDT 9-WLP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: Beyond-the-Rails™
In Stock:23520
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX14689EWL+T Maxim Integrated at chimicron.com. We have 23520 pieces of MAX14689EWL+T in stock available now. Submit an inquiry for MAX14689EWL+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesBeyond-the-Rails™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitDPDT
Multiplexer/Demultiplexer Circuit2:2
Number of Circuits1
On-State Resistance (Max)450mOhm
Channel-to-Channel Matching (ΔRon)5mOhm
Voltage - Supply, Single (V+)1.6V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)200µs, 30µs
-3db Bandwidth110MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))25pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-100dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case9-WFBGA, WLBGA
Supplier Device Package9-WLP (1.26x1.26)
