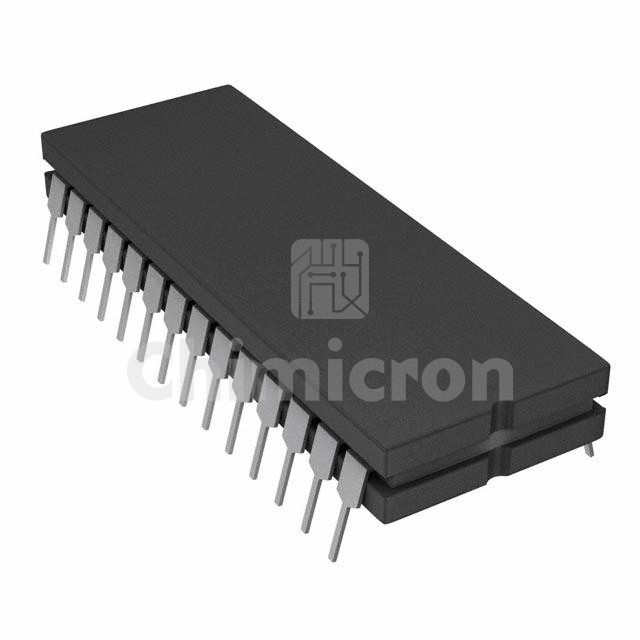

ADG506ABQ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 16X1 28CDIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG506ABQ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2000 pieces of ADG506ABQ in stock available now. Submit an inquiry for ADG506ABQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)300Ohm
Channel-to-Channel Matching (ΔRon)15Ohm
Voltage - Supply, Single (V+)10.8V ~ 16.5V
Voltage - Supply, Dual (V±)±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)300ns, 300ns
-3db Bandwidth-
Charge Injection4pC
Channel Capacitance (CS(off), CD(off))5pF, 44pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
